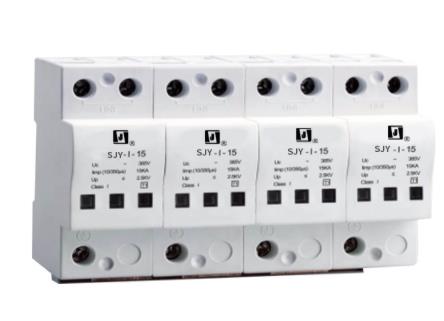

SJY15 power lightning arrester
Product features:
Choose high-quality lightning protection components, high and reliable quality assurance;
Plug-in and pull-out type modular structure design, beautiful appearance;
Temperature control tripping device, long service life, fault failure indication;
Impact discharge current up to 15kA (10 / 350 s);
Fast response time, easy to install, and easy to maintain.
technical parameter:
qualification
SPD model number, SJY15
Rated voltage of Un 220 / 380V AC
Maximum continuous working voltage is Uc 440V AC
Nominal discharge current: In (8 / 20 s): 100kA
Impact discharge current Iimp (10 / 350 s) 15kA
Maximum discharge current: Imax (8 / 20 s): 200kA
There is no connection point of remote letter
Protection level of Up 1.8KV
Response time was <100ns
Maximum backup fuse: 315A
joggle
Upper lead line L / N 6 mm²
Lower lead line PE 10mm²
Wiring mode, terminal wiring
Detengagement action indication No
source
Applicable power supply is AC220V / 380V
Power system TN-S three-phase five lines
mechanical properties
Case Material PA66 UL94-V-0
Dimensions (W H D) 144x91x65 (mm)
Weight: 0.9kg
Installation mode: 35mm DIN guide rail, EN 60715 standard
work environment
Operating temperature-20℃ ~ + 80℃
Storage temperature-40℃ ~ + 80℃
Relative humidity of 5~95% (no condensation exposure)
Protection level, IP20
The elevation shall not exceed 3,000 m
