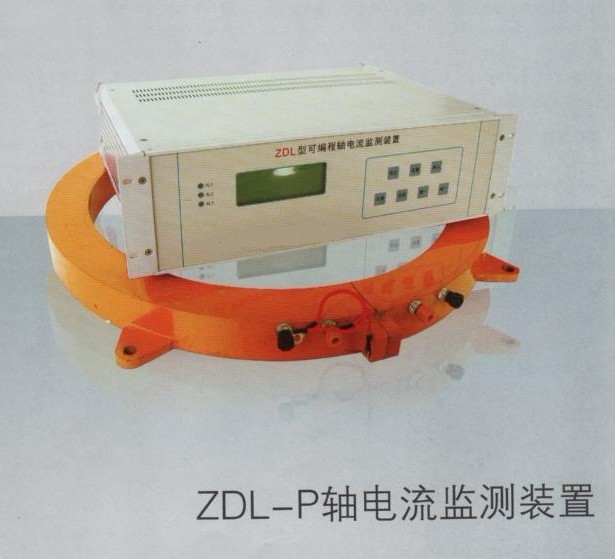

ZDL-P PLC controlled programmable shaft current monitoring device
■ measurement range: 0~5A Overcurrent capacity: 10A
■ measurement accuracy: <1%
■ digital display mode: LCD display
■ output signal: relay contact output of 3 sets (SPDT)
■ contact capacity: 10A / AC230V 5A / DC30V (resistance load)
■ Delay time: 0.5S~5S (independent setting)
■ analog output: 4~20mA load impedance: 500
■ working environment: temperature 0~50℃ and humidity <95%
■ power supply: AC86~265V or DC110~340V
■ power consumption: 30W
