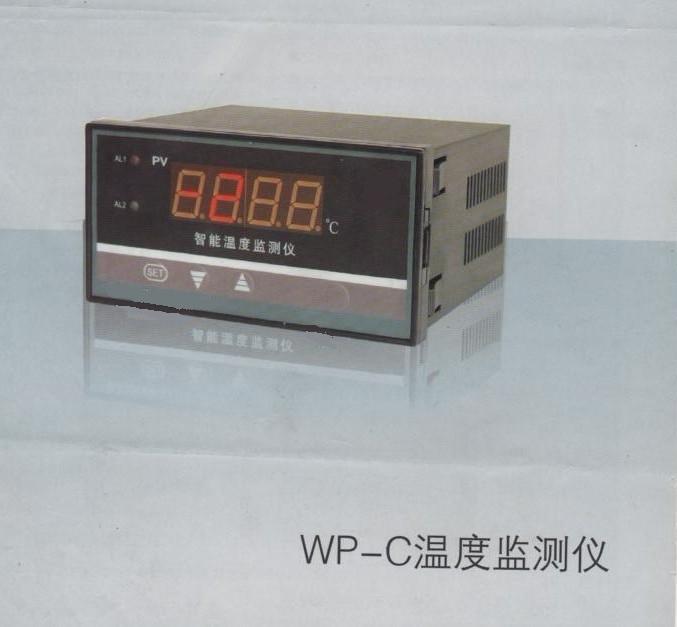

WP-C-T digital temperature instrument
technical parameter
■ input signal: thermal resistance pt100, thermocouple, current, voltage.
■ measurement range: 0~9999
■ measurement accuracy: 0.2%FS ± 1 word
■ resolution: 1,0.1,0.01,0.001 words
■ display mode: -1999~9999 word measurement display-1999~9999 word measurement display
■ control mode: level 2 alarm, LED indication, bit ON / OFF return difference
■ output signal: analog quantity: 4~20mA output resistance 500 switch quantity: relay control output, relay ON / OFF with return difference
Communication output: RS485 baud rate: 300-9600bps internal free setting.
■ service environment: 0~50℃ to avoid strong corrosive gas
■ Relative humidity: 85RH
■ power supply voltage: AC90V-260V (50Hz ± 2Hz) switch power supply supply
■ power consumption: 5W
