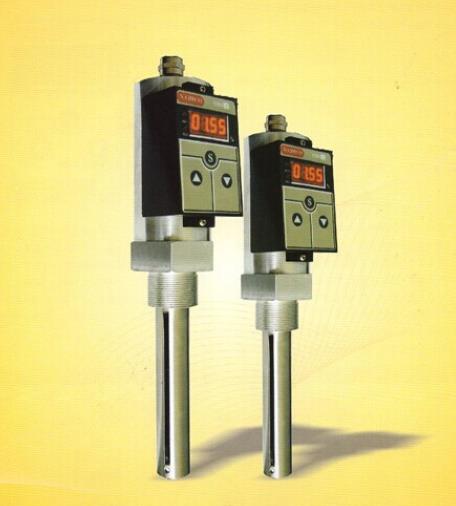

YHS-3 integrated oil water mixing monitoring device
Order No.; HY201
Product use; integrated oil and mixed water monitoring device
Goods Number; 5215414
Processing customization; is
Model number; YHS-3
Specifications; YHS-3
■ Relative humidity: 90%RH
■ medium pressure: 10Mpa
■ electrode material: 1cr18Ni9Ti
■ measurement range: 0~10%
■ measurement accuracy: 0.1%
■ working power supply: D24V
■ power consumption: 10W
■ display mode: 4-bit LED display
■ lead mode: wiring cable
■ output signal: 4~20mA (load resistance: 525 Ω)
■ 2 Group Alarm Contact (SPSD) contact capacity is 1A / AC220V
