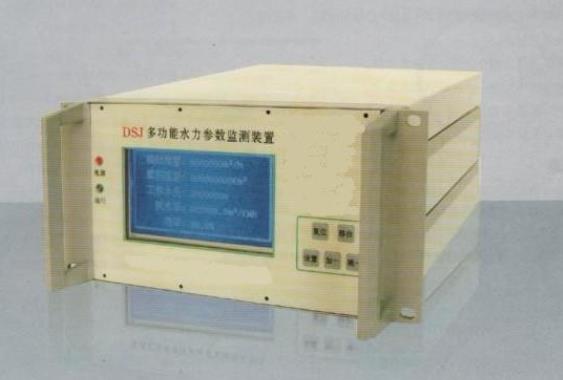

Hydraulic parameter monitoring device DSJ(XAHY)
Product use; hydraulic parameter monitoring device
Goods number; 8709
Processing customization; is
Brand; Hengyuan
model;DSJ
■ input signal: volute differential pressure DC4~20mA
Working head DC4~20mA
Unit efficiency: DC4~20mA
■ accuracy:0.5﹪FS
■ display: monochrome liquid crystal 240X128 points
■ display range: instantaneous flow rate of 0~9999999 m3 / h
Cumulative flow of 0 ~ 9999999 Km3/h
Working head 0~999.99 m
■ output signal: instantaneous flow rate, working head, unit efficiency, water consumption rate.
■ signal type: DC4~20mA (load resistance 525??）
■ fault alarm contact: SPST (action when the device is abnormal
■ communication output: RS485 (MODBUS RTU)
■ working power supply: AC / DC AC86~265V DC110~340V
■ power consumption: 10W
■ working environment: temperature 0℃ ~ + 50℃ Humidity 85%RH
