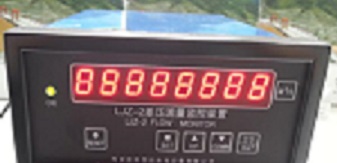

LJZ-2 Differential Pressure Flow Monitoring Device
Model number; LJZ-2
Type; Electronic power meter
Basic current; 10 (A)
Accuracy level; 0.2
Reference voltage; 220 (V)
Current multiplier; 0.2
display mode;LED
Frequency; 50 (Hz)
Maximum current; 20 (A)
Number of boxes packed; 622
Order No.; 11342
Minimum number of packages; 1
Item Number; 11042
Specification; LJZ-2
■ the provides the transmitter working power supply (+ 24V);
■ power supply: AC220V± 10% 50Hz
■ display range: instantaneous value: 0~9999.99 m3 / S
Cumulative flow value: 0~ Km3
Measurement accuracy: ± 0.5%1 word
■ Environmental Conditions: ambient temperature: 0℃ ~ + 50℃ Relative humidity: 90%RH
■ alarm setting: the alarm value can be continuously adjustable within the set range. When the monitoring value reaches the alarm setting value, the alarm relay contact acts at the same time
■ output: analog quantity: DC4~20mA (load resistance 525 Ω)
■ alarm contact output: often open two groups
■ contact capacity: 5A / AC220V or 5A / DC30V
■ power: 12W
