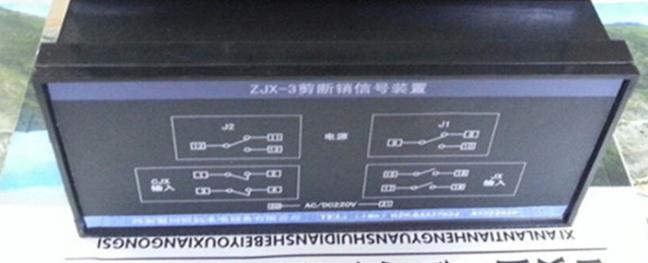

ZJX-3A shear pin device
Type; a Function Signal Generator
Brand: XilHengyuan
Model number: ZJX-3A
Frequency; 50 (MHz)
Level; 220V (V)
Overall dimensions; 45 * 160 (mm)
Weight; 3 (kg)
Unit rated voltage: AC 50Hz, 220V.
Action voltage shall not exceed 85% rated voltage (at 85% rated voltage, the reliable operation of two dry spring relays shall be disconnected).
At rated voltage, when one or two sets of cut pins, two dry spring relays shall operate at the same time.
The insulation strength of all circuits of the device between electrically unrelated circuits shall withstand AC 50Hz and 2000V for 1min without breakdown and flashover.
Among the electrical unrelated circuits, the insulation resistance is + 40℃ and the relative humidity is 85%.
At the rated voltage, when the ambient ambient temperature is + 40℃, the allowable temperature rise of each part of the device shall not exceed 60K.
At the rated voltage, the power consumption of the device is not greater than 7W.
The device weighs approximately 0.8 kg.
