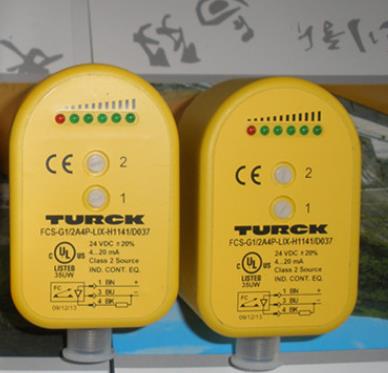

FCS-GL1/2A4P series thermal conductivity flow switch
Product use; Lubricating oil system
Goods number; 10237
Processing customization; is
Brand; Hengyuan
Model number; FCS-GL1 / 2A4P
Specification; FCS-GL1 / 2A4P
1) Working power supply: AC195.5-264.5V DC19.2-28.8V working current: 30mA or 800mA
2) Output: Relay (contact capacity 4A / 250VAC) or transistor switch (NPN/PNP.400mA)
3) Connection thread: G 1 / 2 (conventional)
4) Pressure grade: 10Mpa, and protection level: IP67
5) Response time: 8s
6) Ambient conditions: temperature-20~70℃
7) Operating range (flow rate) water: 1-150 cm/s oil 3-300cm / s
8) Power consumption: AC type 10W, DC type 1.5W
9) The LED indication function
D P L
