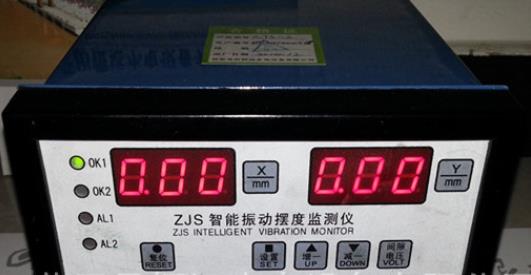

ZJS dual channel vibration swing monitoring device
model;ZJS
Measurement range; 0~1.000mm
Measurement accuracy; & plusmn;0.01mm;
Overall dimensions; General (mm)
Display mode; four-channel 4-bit LCD display
Working environment; 0~ + 50℃
Number of measured signal paths: four channels
Signal form: vibration sensor; eddy current sensor;
Measurement range: 0~1.000mm (symmetric displacement in X or Y direction);
Measurement accuracy: ± 0.01mm;
Signal sensitivity: 5V / mm (or 2.5V / mm);
Frequency response: 0.5Hz~250Hz;
Display mode: four-channel 4-bit LCD display;
Power supply: DC612V;
Output analog signal: DC4~20mA (load resistance 525V);
Switch volume output signal: 8 sets of SPST nodes (level 2 alarm per channel)
Contact capacity: AC220V/0.5A DC220V/0.15A
Power supply: AC / DC universal AC85~265V DC110~340V
Power consumption: 8W;
Operating environment: temperature: 0~ + 50℃; relative humidity: 85%RH
