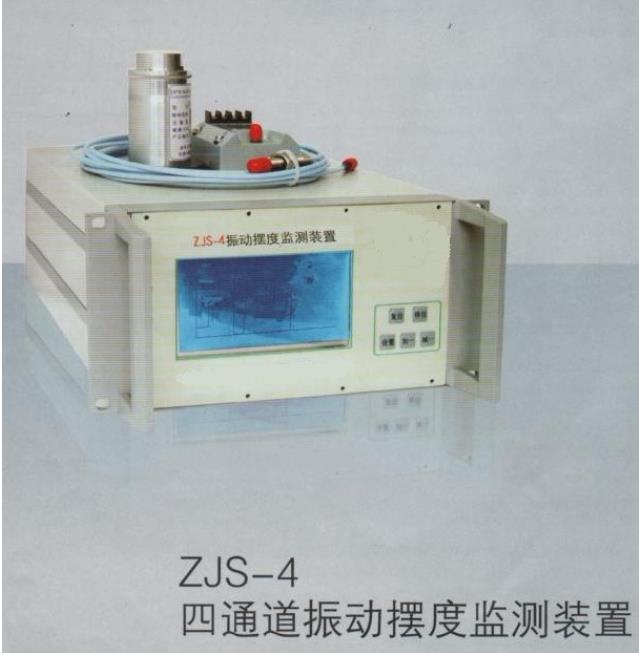

ZJS-4 Vibration Swing Monitoring Device
Origin; Xi'an
Whether to import; No
Order Number; 7713
Product use; monitoring device
Goods number; 8713
Processing customization; is
Brand; Hengyuan
Model number; ZJS-4
Number of measured signal paths: four channels
Signal form: vibration sensor; eddy current sensor;
Measurement range: 0~1.000mm (symmetric displacement in X or Y direction);
Measurement accuracy: ± 0.01mm;
Signal sensitivity: 5V / mm (or 2.5V / mm);
Frequency response: 0.5Hz~250Hz;
Display mode: four-channel 4-bit LCD display;
Power supply: DC612V;
Output analog signal: DC4~20mA (load resistance 525V);
Switch volume output signal: 8 sets of SPST nodes (level 2 alarm per channel)
Contact capacity: AC220V/0.5A DC220V/0.15A
Power supply: AC / DC universal AC85~265V DC110~340V
Power consumption: 8W;
Operating environment: temperature: 0~ + 50℃; relative humidity: 85%RH
