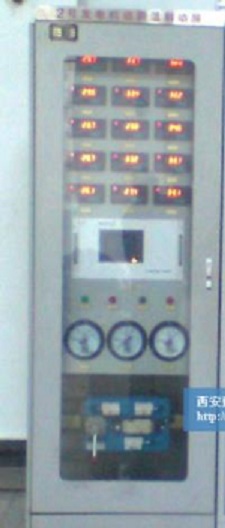

WSZP temperature measurement brake screen
Item Number: 13100
model:WSZP
Scope of use: auxiliary machine control device of hydropower station
Accuracy level: 100
Input end: brake screen
Output: Multiplex
Power supply and power consumption: 220V
1. Instrument input power supply: AC 220V± 15%; DC100~ 250V
2. Air valve operating power supply: DC 220V, 110V, or AC 220V
3. Operating pressure of the brake system: 0.1~1MPa
4. Brake control mode: one direction and two directions
5. Air outlet and inlet pipe diameter (inner diameter): φ 8, φ 10, φ 12, φ 15
6. Gas brake valve: adopt the MFH-5 combination valve produced by the factory
7. Oil brake valve: adopt the DPW solenoid pressure distribution valve produced by the factory
8. Working pressure of the oil brake: 2.5-6.3MPa
9. Size of cabinet: 800mm 600mm 2260mm
