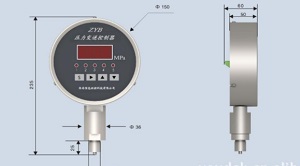

ZYB pressure transmitting controller
Brand: Baoji Xirui
Delivery time: one week
WS


1、 Overview
ZYB adopts piezoresistive OEM pressure sensing element as the sensor, which is an intelligent instrument integrating pressure measurement display, analog 4~20mA output, 6 groups of relay control and 485 communication. It can be used for measuring and controlling the pressure of gas and liquid with weak corrosivity and temperature lower than 85 ℃.


2、 Technical parameters
1. Measuring range: - 0.10~40 Mpa
2. Power supply voltage: AC/DC110~220V; DC24V
3. Output form: 6 pairs of switching value; One analog quantity; MODBUS485 communication
4. Contact type: normally open and normally closed
5. Contact capacity: 3A/AC250V; 1ADC30V
6. Outgoing mode: terminal connection
7. Precision: 0.5% Annual drift: ＜± 0.2FS/year
8. Application environment: weakly corrosive liquid and gas medium temperature: - 10~85 ℃ Ambient temperature: - 10~65 ℃ Ambient humidity: ≤ 90% RH
