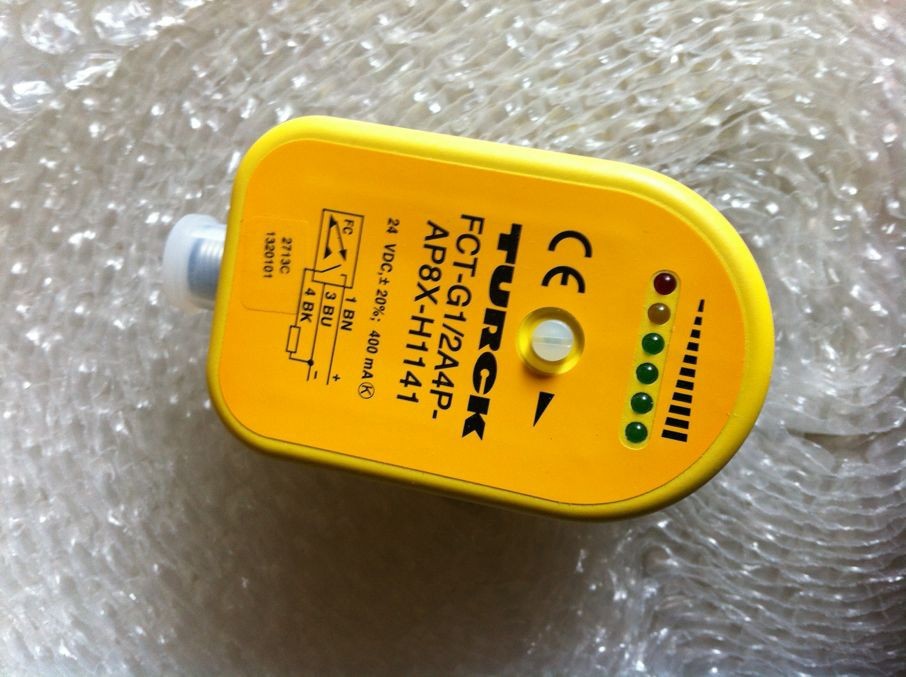

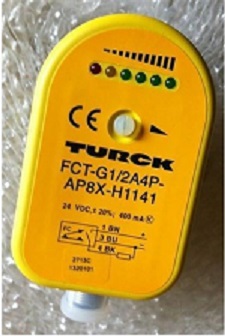

FCT-G1/2A4P-AP8X-H1141 inductive flow switch
1. Measurement range: 0-5 m/s of water and 0-10 m / s of oil
2. Operating voltage: AC / DC110V, AC / DC220V, DC24V
3. Power consumption: 2W (24VDC), 3W (220VDC / AC)
4. Setting mode: potentiometer setting (disassembly-free design, set directly by drive screw)
5. Output mode: relay air contact output, PNP output, NPN output 4-20MA output
6. Response time: 0.5~1s, with a typical value of 0.9s
7. Initialization time: about 8s
8. Electrical protection: reverse phase, short circuit, overload protection
9. Contact capacity: 1A / 125VAC, 2A / 30VDC
10. Isolation impedance: 100 MΩ / 500VDC
11. Pressure resistance range: 100bar
12. Medium temperature: -20~80℃
13. Shell material: 316L stainless steel
14. Probe material: 316 stainless steel
15. Interface size: default G1 / 2 ''
16. Protection level: IP67
17. Import line distribution.
