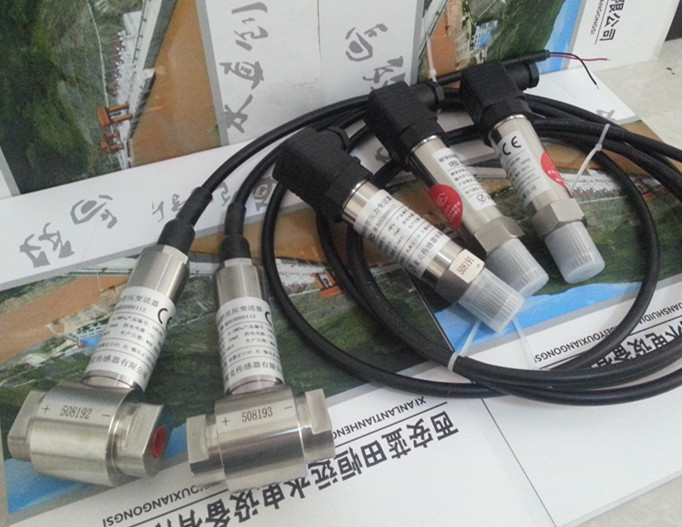

YHS-2 oil mixed water monitoring device
Origin; Xi'an
Whether to import; No
Order No.; 32685
Product use; oil and mixed water monitoring device
Goods number; 1522
Processing customization; is
Brand; Hengyuan
Model number; YHS-2
■ accurately measures the moisture content of the oil system, and can output the corresponding standard analog quantity signal;
■ alarm value can be set at will, easy to adjust;
■ measurement principle is advanced, stable and reliable work;
■ sensor takes MCU as the core to achieve intelligence;
■ products are small in volume, full in function, and simple in installation;
technical parameter
■ power supply: AC220V± 10% 50Hz
■ measurement range is: 0~5%
■ measurement accuracy: 0.5%
■ ambient condition:
1. Sensor
Ambient temperature: Working: 5℃ ~ + 50℃ relative humidity: 90%
■ alarm setting:
The alarm value can be continuously adjustable in the water content in the range. When the moisture content reaches the alarm setting value, the luminous tube on the panel shines light, and the alarm relay contact moves at the same time.
■ output: analog quantity: DC4~20mA (load resistance: 525 Ω)
Contact output: the capacity of each contact set is open: 10A / AC220V or 5A / DC30V
■ power: Sensor: 5W Instrument: 10W
