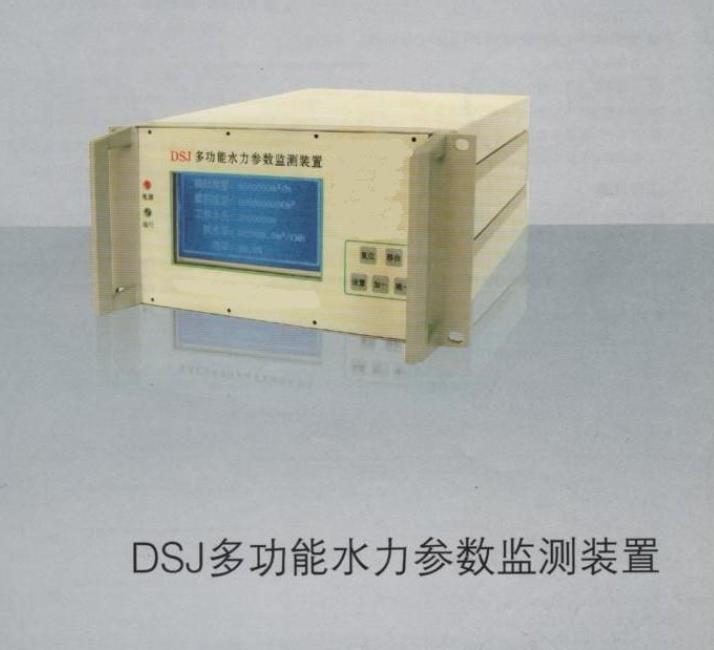

DSJ energy hydraulic parameter monitoring device
Origin; Xi'an
Whether to import; No
Order Number; 11264
Product use; hydraulic parameter monitoring device
Goods number; 11375
Processing customization; is
Brand; Hengyuan
model;DSJ
■ input signal: volute differential pressure DC4~20mA
Working head DC4~20mA
Unit efficiency: DC4~20mA
■ accuracy:0.5﹪FS
■ display: monochrome liquid crystal 240X128 points
■ display range: instantaneous flow rate of 0~9999999 m?/h
Accumulated flow of 0~9999999Km?/h
Working water head: 0~999.99 m
Efficiency of 0~99.9%
Water consumption rate of 0~999999.9 m?/KWh
■ output signal: instantaneous flow rate, working head, unit efficiency, water consumption rate.
■ signal type: DC4~20mA (load resistance 525? )
■ fault alarm contact: SPST (action when the device is abnormal
■ communication output: RS485 (MODBUS RTU)
■ working power supply: AC / DC AC86~265V DC110~340V
■ power consumption: 10W
■ working environment: temperature 0℃ ~ + 50℃ Humidity 85%RH
