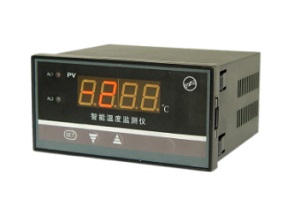

WP-C temperature monitor

WP-C temperature monitor
Brand: Baoji Xirui
Delivery time: 1 week
WS


1、 Overview
The WP-C temperature regulator is used for measuring various non electric quantities. The microprocessor is used for mathematical calculation and has high measurement accuracy.


2、 Technical parameters


■ Input signal: thermal resistance pt100, thermocouple, current, voltage.


■ Measuring range: 0 ～ 9999


■ Measurement accuracy: 0.2% FS ± 1 word


■ Resolution: 1, 0.1, 0.01, 0.001 words


■ Display mode: - 1999~9999 measured value display - 1999~9999 measured value display


■ Control mode: Level 2 alarm, LED indication, bit ON/OFF return difference


■ Output signal: analog quantity: 4~20mA Output resistance ≤ 500 Ω Switching value: relay control output, relay ON/OFF return difference


Communication output: RS485 baud rate: 300-9600bps internal free setting.


■ Operating environment: 0~50 ℃ to avoid strong corrosive gas


■ Relative humidity: ≤ 85RH


■ Power supply voltage: AC90V-260V (50Hz ± 2Hz) switching power supply


■ Power consumption: ≤ 5W
