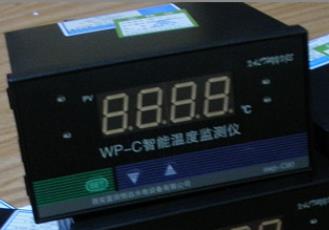

WP-C80-220V-PT100 intelligent temperature monitor
Main technical parameters
incoming signal
Analog quantity thermocouple: standard thermocouple- -B, S, K, E, J, T, WRe3~25, etc
Resistance: Standard thermoelectric resistance- -Pt100, Cu50, Pt100.1, remote transmission pressure resistance: 30~350 Ω, etc
Current: 0~10mA, 4~20mA, etc. (input impedance: 250 Ω)
Voltage: 0~5V, 1~5V, mV, etc. (input impedance: 1 MΩ)
output signal
Analog output DC 4~20mA (load resistance 750 Ω) DC 0~10mA (load resistance 1.5K Ω)
DC 1~5V (load resistance 250 KΩ) DC 0~5V (load resistance 250K Ω)
Switch output relay control output: -ON / OFF (with return)
Contact capacity (resistive load) — AC220V / 3A; DC24V / 3A
Over zero trigger pulse output (SCR) -can trigger 600V / 100A
Solid-state relay control signal output (SSR) -Output DC9V / 30mA
Over-zero trigger output-bidirectional CR 600V / 5A
Communication Outputs the standard serial communication interface
Communication mode: RS-232C, RS-485
Baud rate of 300bps~9600bps (free set)
Feed output DC 24V, load 30mA
characteristic
Measurement accuracy number: ± 0.5%FS ± 1-word light column: ± 1%FS
Resolution digital display: ± 1-word light column display: ± 1 line
Display range number: -1999~9999 Light Column: 0~100%
Display mode four high brightness LED digital display 101 line high resolution light column display
Operating status display single screen digital display / dual screen digital display
Single screen digital + single light column display dual screen digital + double light column display
Control mode can choose upper, upper or lower limits
Control set value control set value and return difference value in the full range of free setting
Temperature compensation 0~50℃ temperature compensation
Parameter setting panel Touch button digital setting parameter setting value is permanently saved after power outage
Parameter Setpoint password lock
Protection mode Thermocouple / thermal resistance input disconnected alarm relay output state LED indication
Input over / underrange alarm input over range flashing alarm
Work abnormal automatically reset
