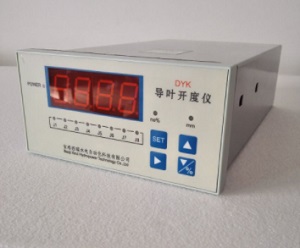

DYK guide vane opening meter

DYK guide vane opening meter
Brand: Baoji Xirui
Delivery time: 1 week
WS


technical parameter


■ Measuring signal: displacement sensor signal form: current 4~20mA


■ Measurement accuracy: nonlinearity ＜ 0.3%


■ Contents of digital display: displacement stroke value, opening percentage, output setting value of each circuit.


■ Switching value output signal: 8 channels, each point can be set by the user within the specified range.


Output contact capacity: 5A/250VAC, 5A/30VDC


■ Analog output: 4~20mA (corresponding to 0%~100% opening)


■ Working environment: temperature 0~50 ℃, humidity<85%


■ Working mode: continuous


■ Power supply: 110V/220VDC or AC110/220V/50Hz


■ Power consumption: 10W
