LJZ-2

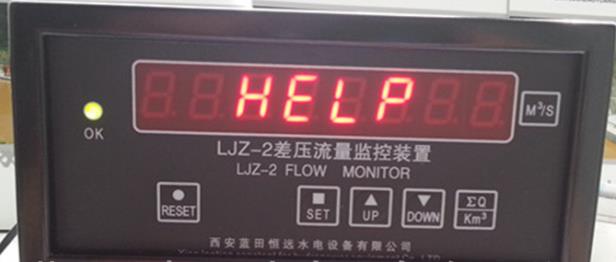

LJZ-2 intelligent flow monitor
Brand: Baoji Xirui
Delivery time: one week
WS


1、 Overview
LJZ-2 intelligent flow monitor is an intelligent digital instrument that processes standard signals with a single chip microcomputer as the core. It forms a flow monitoring device with a three valve group, a differential pressure transmitter, etc., to form a flow monitoring system for the spiral case of a hydraulic turbine.


2、 Features
■ It is an intelligent digital instrument with a single chip processor as the processing system;
■ The transmitter range and instrument range are easy to set and modify;
■ It has breakpoint memory and parameter automatic protection functions;
■ Instantaneous flow and cumulative flow can be switched;
■ The alarm value can be set freely and adjusted conveniently;
■ Provide standard signal output corresponding to instantaneous flow;
■ Provide transmitter working power supply (+24V);
■ Touch buttons are used, which are beautiful and elegant.


3、 Technical parameters
■ Power supply: AC220V ± 10% 50Hz
■ Display range: instantaneous value: 0 ～ 9999.99 m3/S
Cumulative flow value: 0 ～ 99999999 Km3
Measurement accuracy: ± 0.5% F .S1 words
■ Environmental conditions: ambient temperature: 0 ℃~+50 ℃ Relative humidity: ≤ 90% RH
■ Alarm setting: the alarm value can be continuously adjusted within the set range. When the monitoring value reaches the alarm set value, the alarm relay contacts act simultaneously.
■ Output: analog quantity: DC4 ～ 20mA (load resistance ≥ 525 Ω)
■ Alarm contact output: normally open two groups
■ Contact capacity: 5A/AC220V or 5A/DC30V
■ Power: 12W
