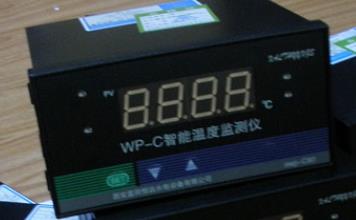

WP-C80-220V-PT100 intelligent temperature monitor
Brand: XilHengyuan
Model number: WP-C80
Measuring range: 0-450 (℃)
Temperature measurement resolution: 0.1
Temperature measurement accuracy: 0.01%
Overall dimensions: 80 * 160 * 80 (mm)
Main technical parameters
incoming signal
Analog quantity thermocouple: standard thermocouple- -B, S, K, E, J, T, WRe3~25, etc
Resistance: Standard thermoelectric resistance- -Pt100, Cu50, Pt100.1, remote transmission pressure resistance: 30~350 Ω, etc
Current: 0~10mA, 4~20mA, etc. (input impedance: 250 Ω)
Voltage: 0~5V, 1~5V, mV, etc. (input impedance: 1 MΩ)
output signal
Analog output DC 4~20mA (load resistance 750 Ω) DC 0~10mA (load resistance 1.5K Ω)
DC 1~5V (load resistance 250 KΩ) DC 0~5V (load resistance 250K Ω)
Switch output relay control output: -ON / OFF (with return)
Contact capacity (resistive load) — AC220V / 3A; DC24V / 3A
Over zero trigger pulse output (SCR) -can trigger 600V / 100A
Solid-state relay control signal output (SSR) -Output DC9V / 30mA
Over-zero trigger output-bidirectional CR 600V / 5A
Communication Outputs the standard serial communication interface
Communication mode: RS-232C, RS-485
Baud rate of 300bps~9600bps (free set)
Feed output DC 24V, load 30mA
