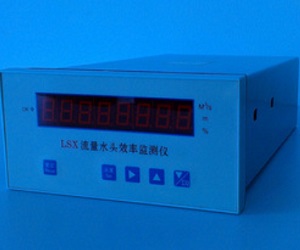

LSX flow head efficiency monitoring device
Brand: Baoji Xirui
Delivery time: one week
WS


1、 Overview
The flow and head efficiency monitor is an intelligent digital instrument with a single chip microcomputer as the core to process standard signals. It forms a flow and head efficiency device (see Figure 1) with a three valve manifold, a differential pressure transmitter, a differential pressure side transmitter for water head measurement, and a power transmitter, forming a water turbine flow and head efficiency monitoring system.


2、 Features
■ Power supply: AC220V ± 10% 50Hz
■ Display range: instantaneous value: 0 ～ 9999.99 m3/S
■ Cumulative flow value: 0 ～ 99999999 Km3
■ Head value: 0 ～ 9999.99 Km
■ Measurement accuracy: ± 0.5% F. S ± 1 word
■ Ambient temperature: 0 ℃~+50 ℃
■ Relative humidity: ≤ 90% RH
■ External magnetic field: ≤ 400 A/m Vibration: f ≤ 20Hz, A ≤ 0.2mm
■ Output: analog quantity


3、 Principle
The flow through the turbine is measured by ultrasonic method. The flow of the outlet turbine is calculated according to the relationship between the flow Q and the sectional area S1 of the ultrasonic velocity measuring device V pipe: Q=V * S1, where V is the ultrasonic velocity measuring coefficient.
