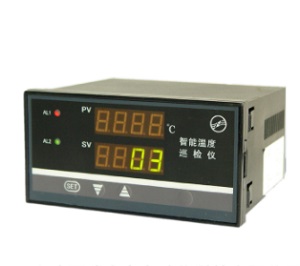

WP-D temperature patrol detector
Brand: Baoji Xirui
Delivery time: 1 week
WS
technical parameter
■ Input signal: thermal resistance pt100, thermocouple, current, voltage.
■ Measurement range: 0 ～ 9999 Measurement accuracy: 0.2% FS ± 1 word
■ Resolution: 1, 0.1, 0.01, 0.001 words
■ Display mode: - 1999~9999 measured value display - 1999~9999 measured value display 1-16 channel number display.
■ Control mode: Level 2 alarm, LED indication, bit ON/OFF return difference
■ Output signal: analog quantity: 4~20mA, output resistance ≤ 500 Ω
■ Switching value: relay control output, relay ON/OFF return difference
■ Communication output: RS485 baud rate: 300-9600bps internal free setting.
■ Operating environment: 0~50 ℃ Relative humidity: ≤ 85RH
■ Power supply voltage: AC90V-260V (50Hz ± 2Hz) switching power supply
■ Power consumption: ≤ 5W
