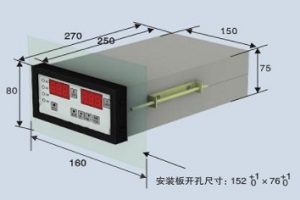

ZJS-2 dual channel runout monitoring device
Brand: Baoji Xirui
Delivery time: one week
WS
1、 Overview
The intelligent vibration pendulum monitor is a dual channel intelligent digital instrument with a single chip microcomputer as the core processor. The instrument is connected with the eddy current displacement sensor to monitor the radial vibration of the main shaft of the hydro generator unit in X and Y directions on line; Connected with low frequency vibration sensor, it can monitor the vibration of vertical and horizontal channels online. The instrument has dual channel digital display, analog output and switching output.
2、 Features
N Dual channel intelligent digital instrument with single chip microcomputer as the core processor;
N Press the key to select the vibration/swing monitoring mode;
N Dual channel standard analog signal output corresponding to the display range;
N Provide alarm status display and normally open contact output, and dual channel two-level alarm values can be set separately;
N It has power failure memory and parameter automatic protection functions;
N Perfect system self-test function;
N Provide working power supply for transmitter;
N Advanced instrument manufacturing and processing technology.
3、 Technical parameters
N Input signal:
When used for vibration monitoring: it can receive signals from two channels (horizontal or vertical) vibration sensors;
When it is used for swing monitoring: it can receive two channels (X or Y) eddy current sensor signals;
N Measurement range: 0 ～ 1.00 mm (swing is symmetrical displacement in X or Y direction);
N Measurement accuracy: ± 0.01mm;
N Sensitivity: 5V/mm (or 2.5V/mm);
N Frequency response: 0.5Hz~250Hz;
N Display mode: dual channel 3-digit digital tube display;
N Provide sensor working power supply: DC612V;
N Output analog signal: DC4 ～ 20mA (load resistance ≤ 525V);
Output alarm signal: contact form: normally open
Contact capacity: AC220V 0.15A
DC220V 0.1A
N Alarm setting value: two-level alarm output (set arbitrarily within the range);
N Instrument working power supply; AC220V610％ 50Hz；
N Power consumption: 10W;
N Operating environment:
Temperature: 0 ～ ＋ 45 ℃;
Relative humidity ≤ 90% RH
